How do I wire the BatteryCharge60?

Setec Customer Support
Updated
  1. Attach the BatteryCharge60’s positive (+) red output cable to the battery’s positive terminal. Ensure an 80A fuse is installed.
  2. Attach the BatteryCharge60’s negative (-) black output cable to the battery’s negative terminal.
  3. Place the temperature sensor as close to the battery as possible.

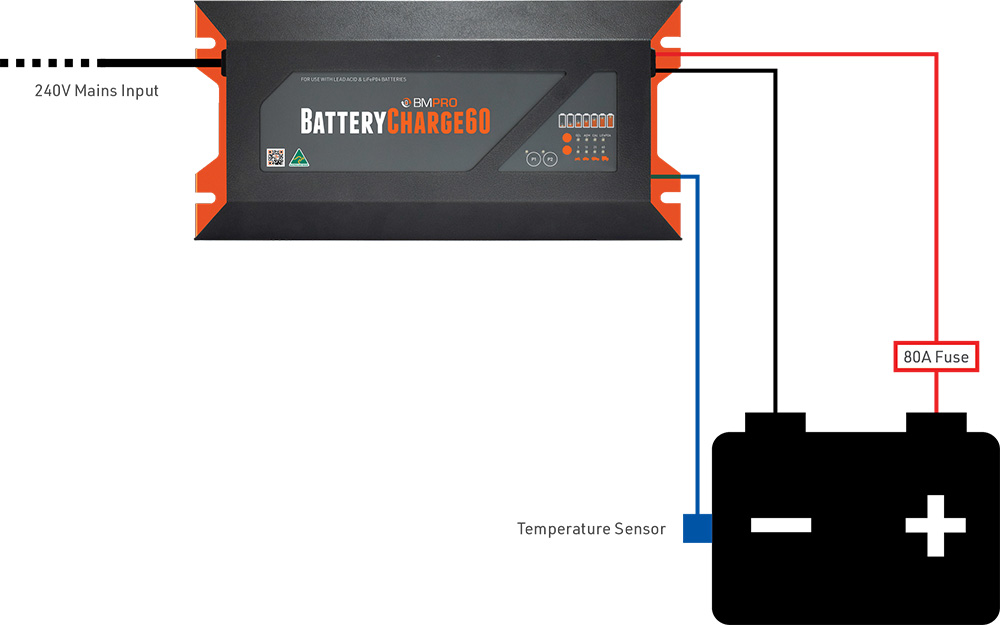

BC60 wiring zendesk.jpg
