To install the PurePro remote:

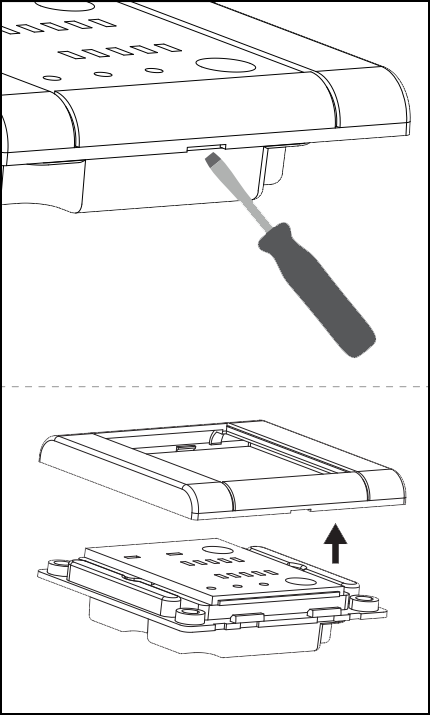

- Use a screwdriver to separate the front plate of the remote from its main body.
- Use the main body as a template to mark four screw holes with a pencil.
- Pre-drill four screw holes on the mounting surface with a drill.
- Connect one end of the RJ-type cable into the cable port on the remote.
- Align the mounting holes on the corners of main body with the pre-drilled screw holes.
- Fix the main body with included screws.
- Re-attach the front plate to the main body.
- Connect the other end of the included RJ-type cable into the remote port on the side of the PurePro2000.
